Components

Specifications

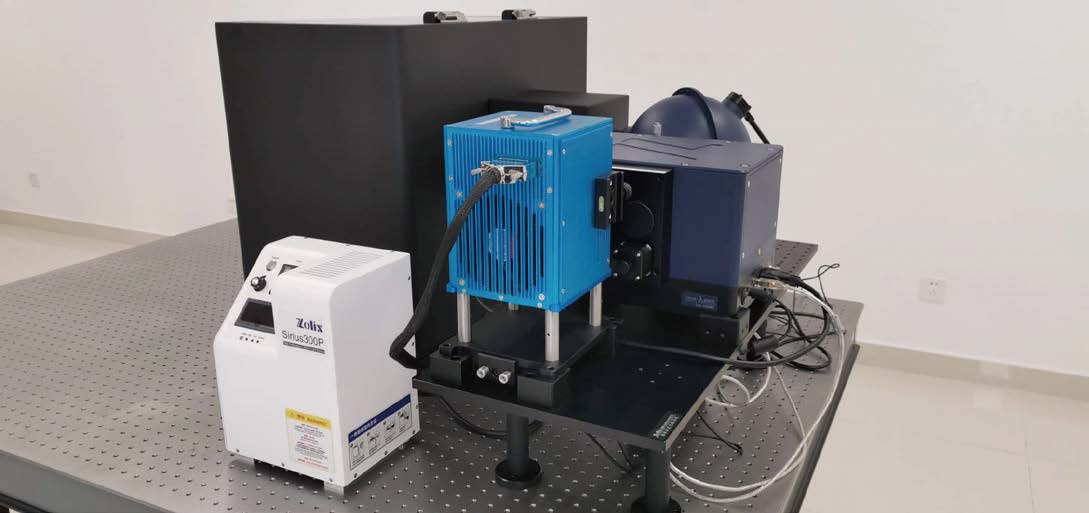

Uniform Tunable Light Source

Arc xenon lamp: 150 W, spectral range: 200 - 2500 nm, instability is less than 0.5%, 7.5 A working current, 3000h lifetime

Spectrograph: 320 mm focal length, F/4.2, resolution 0.08 nm @ 1200 g/mm grating, adjustable band width 0.5 - 12 nm, spectral range: 200 - 2500 nm, stray light 1 × 10-5

Integrated Sphere: Diameter 200 mm, material F4, coating reflectivity larger than 95%, spectral range 250 - 2500 nm

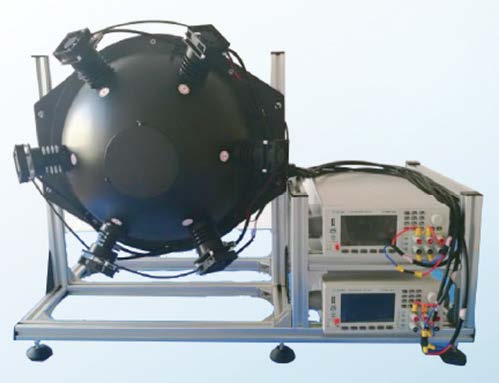

Uniform Broadband Light Source

Integrated Sphere diameter is 1100 mm, output port diameter is 100 mm, 2 to 6 halogen light sources

Spectral Range: 340 - 2500 nm

Halogen Bulb Power: 50 W, Input voltage: DC 12V

Sample Chamber

Stray Light Suppression Capability: > 80dB @ 300 - 1700 nm

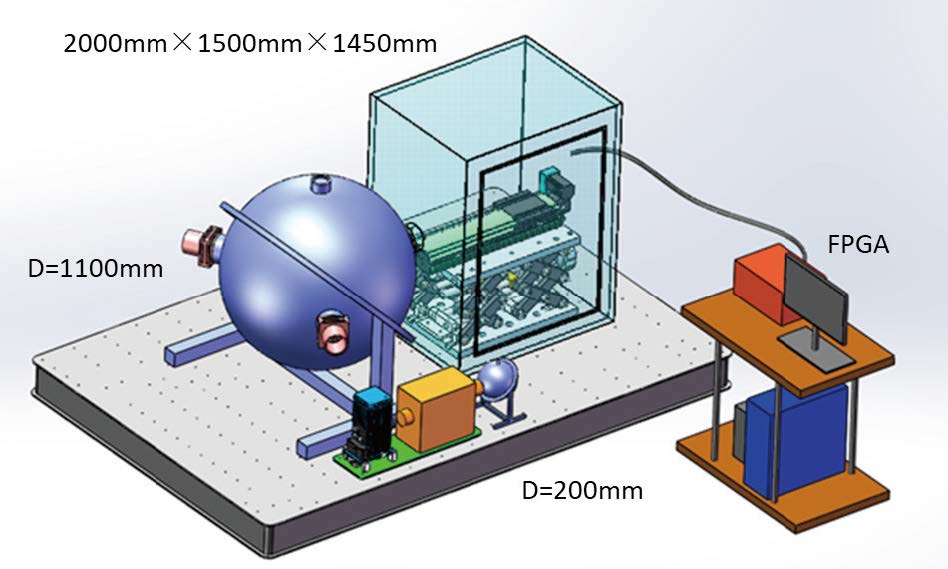

Chamber Size (mm): 2000×1500×1450

The travel in the optical axis direction is 100 mm, in the vertical direction is 100 mm

Test Software

Noise Measurement

Response and Detection Rate Measurement

Dynamic Range and Linearity Measurement

Non-uniformity Correction

Bad Pixel Location

Select Test Area, Image Storage

Image Rotation, Magnification and Autorange

Generate, Display and Save Test Result
