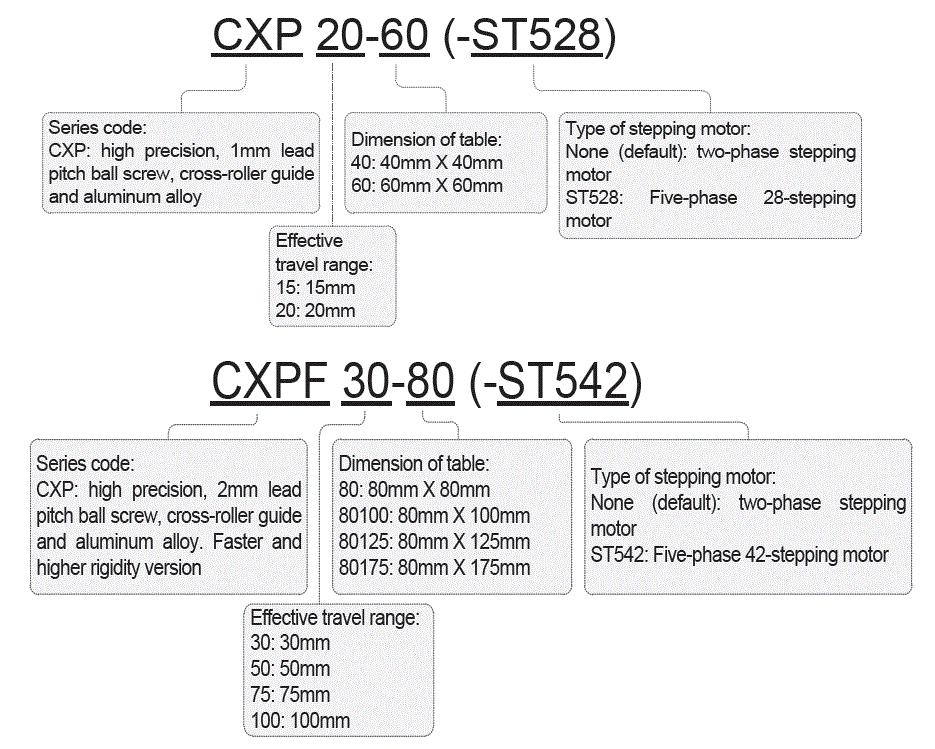

Model number

CXP15-40

CXP20-60

CXPF30-80

CXPF50-80100

CXPF75-80125

CXPF100-80175

Mechanical specifications

Table dimensions(mm)

40×40

60×60

80×80

80×100

80×125

80×175

Travel range(mm)

15

20

30

50

75

100

Transmission mechanism

ball screws, ball screw,Φ6×1

ball screws,Φ8×2

Guides (guiding mechanism)

cross-roller guides

Main body materials and surface treatments

Black anodic-oxidation aluminum-alloy

Weight (Kg)

0.4

0.6

1.2

1.4

1.6

1.8

Shaft coupling (external diameter-diameter
of aperture 1-diameter of aperture 2) (mm)

16-3-5

16-5-5

Accuracy specifications

Step/half-step resolution (μm)

5/2.5

10/5

20-fine-subdivision resolution (μm)

0.25

0.5

Highest speed (mm/s)*

10

20

Single-direction positioning accuracy (μm)

≤20

≤40

Repositioning accuracy (μm)

≤±1.5

≤±2

Static clearance (μm)

≤1

Backlash clearance (μm)

≤3

Static parallelism (mm)

≤0.08

≤0.1

Motion linearity (μm)

≤10

Motion parallelism (μm)

≤15

Yaw (")

≤35

/

Pitch (")

≤30

/

Specialty specifications

Micro-step capability (μm)

≤5

≤2**

Repositioning accuracy with micro-step motion (μm)

≤±1

Backlash clearance with micro-step motion (μm)

≤0.5

Electrical specifications

Motor and its stepping angle (°)

Two-phase 28 stepping motor, 1.2,

Two-phase 42 stepping motor, 1.8

Brand and model number of motor

Shinano, STP-28D1003-08

Shinano, SST-43D2126-10

Working current (A)

1.3

1.7

Torque of motor (N·m)

0.0785

0.456

Brand and model number of stepping driver (optional)

Moons, SR2

Type of plugs for stages

1*DB9 (pin)

Type of cables for stages

High flexible cables (Helukabel, Germany)

Length of cables for stages(m)

0.2

Position-limit sensors (built-in)

2*GP1S09xHCPI (Sharp, Japan)

Origin-point sensors (built-in)

1*GP1S09xHCPI (Sharp, Japan)

Voltage of power supply for sensors (V)

DC5~24V ±10%

Output for control

collector of NPN open-circuit output

Status of output ports

output ON when sensor is blocked

Operating load

Horizontal direction (Kg)

5

8

16

20

25

30

Invert direction (Kg)

2

3

5

6

7

8

Vertical direction (Kg)

3

4

5

5

5

5
